Supply OEM/ODM 7A PCB Relay Socket (PX78626)

Short Description:

Introducing the 4-Point Relay Module – Your Reliable Solution for Efficient Control and Monitoring!

The 4-Point Relay Module is designed to provide seamless control and monitoring of your electrical systems, making it easy to manage the status of each input and output terminal. With its user-friendly interface and clear status indicators, you can easily visualize and manage the operation of your connected devices.

One of the key features of the 4-Point Relay Module is its relay coil with surge suppression circuit, which significantly extends the life of the relay and ensures reliable performance. This means you can have peace of mind knowing that your electrical systems are protected from power surges and voltage fluctuations, reducing the risk of equipment damage and downtime.

Furthermore, the module’s sealed housing structure is designed to prevent oxidation and metal dust adhesion caused by PCB exposure. This not only ensures the longevity of the module but also mitigates safety hazards such as short circuits and incorrect operations, providing a secure and stable environment for your electrical applications.

Whether you’re a professional installer, a DIY enthusiast, or a facility manager, the 4-Point Relay Module offers a robust and dependable solution for your control and monitoring needs. Its durable construction, advanced features, and easy-to-use design make it the perfect choice for a wide range of applications, from home automation to industrial control systems.

Experience the reliability and convenience of the 4-Point Relay Module and take your control and monitoring capabilities to the next level. Say goodbye to complicated wiring and unreliable performance, and embrace the efficiency and peace of mind that comes with the 4-Point Relay Module. Upgrade your electrical systems today and unlock a new level of control and monitoring excellence!

Send email to us

Product Detail

FAQ

Product Tags

We’ve been experienced manufacturer. Wining the majority on the crucial certifications of its market for Supply OEM/ODM 7A PCB Relay Socket (PX78626), The mission of our company would be to present the very best high quality solutions with greatest rate. We’ve been seeking ahead to doing business along with you!
We’ve been experienced manufacturer. Wining the majority on the crucial certifications of its market for China PCB Relay Socket and Socket, Our items are exported worldwide. Our customers are always satisfied with our reliable quality, customer-oriented services and competitive prices. Our mission is “to continue to earn your loyalty by dedicating our efforts to the constant improvement of our items and services in order to ensure the satisfaction of our end-users, customers, employees, suppliers and the worldwide communities in which we cooperate”.

High-frequency relay

Socket

Relay sets

Small size,high sensitivity

●Single-pole 4-way,one-to-one control.
●PC alloy material with high strength.
●It can be matched with international brand reays high temperature resistance,and corrosion resistance.

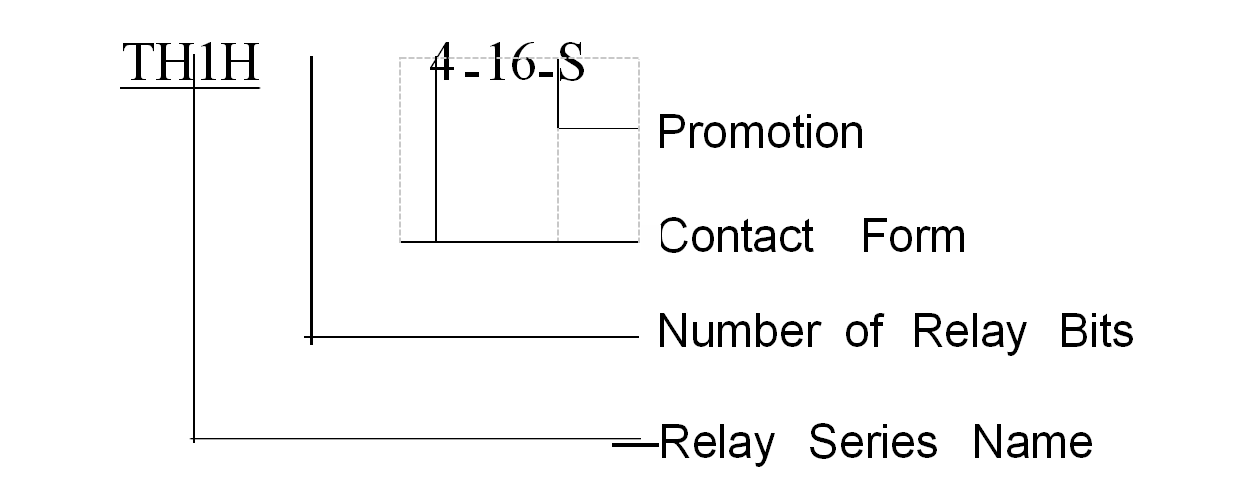

Performance Parameters
Modality	1NO
Load	3～5A250VAC
Resistance	3A250VAC/30VDC
Contact Res	≤100mΩ
Insulation Res.	≥500MQ
Pull-in Voltage	DC:≤75%(rated voltage)(23℃)v
Release Voltage	DC:≥10%(rated voltage)(23℃)
Max.Voltage	110%of rated voltage (23℃)
Pick-up Time	≤10ms
Release Time	≤10ms
Coil Power	About 0.9W(DC)/about 1.2VA(AC)
Electrical Life Switching frequency 7200ps/h	At room temperature,3A250V/30VDC(1s on,9s off): ≥400000 times
	At 70℃,3A250V/30VDC(1s on,9s off ):≥200000 times
	At room temperature,5A250V/30VDC(1s on,9s off): ≥100000 times
	At 70℃,5A250V/30VDC(1s on,9s off):≥50000 times
Mechanical Life	≥6000000times(1800 Ops/h)(refer to GB/T14048.5)
Electrical strength	Between coil and contact AC4000V 50/60Hz 1min
	Between contacts AC750V50/60Hz 1min
Minimum Touch Current	3VAC/DC,5mA(reference value,depend on environmental and load conditions)
Screw Torque	Nm	0.8-1.0
size of wire	AWG/mm2	20-14/0.5-2.5
Plug Life	/	10000 Cycles)
Flame Retardant	/	UI94-V1
Shell Plastic	/	PA6+G30F
Insert material	/	high precision phosphorous copper,surface plated with tin
Net Weight	g	73.1

★All the above parameters and specifications are established based on the internal experimental data standard of Zhejiang Taihua Company,and the company reserves the right offinal interpretation.

Coil Specification
Rated Voltage V.DC	5	12	18	24	/	/	/
Coil Resistance Ω	40	180	640	2600	/	/	/

Coil resistance tolerance:For coil rated voltage nominal value below 110V,the tolerance is±102.For coil rated voltage nominal value above 110V,the tolerance is±150Q.

Annex Table

Coil Specification
Rated Voltage V.DC	5	12	18	24	/	/	/
Coil Resistance Ω	40	180	640	2600	/		/

Coil resistance tolerance:For coil rated voltage nominal value below 110V,the tolerance is±102.For coil rated voltage nominal value above 110V,the tolerance is±15Q.
